Your are here: Home >> Products >>Mini multi-function Distillation, Concentration, Deposition and Recycle Machine-group
The unit is the new product researched and developed by our factory on the basis of referring to the same products from home and abroad. It integrates multifunctional extraction, vacuum concentration and solvent recycling and simplifies the operation procedure. At the same time, the extraction, concentration and recycling are carried out in a sealed flow circuit.
Directory
- Usages of multi-function Recycle Machine-group
- Characteristics of multi-function Recycle Machine-group
- Technical Parameters of multi-function Recycle Machine-group
- multi-function Recycle Machine-group Finished Picture
Usages of multi-function Recycle Machine-group
It is widely used in Chinese herbal medicine, herbal plants, animals, medicine, food additives, chemical engineering, etc.
Characteristics of multi-function Recycle Machine-group
It has avoided the occurrence of “running”, “protruding”, and “l(fā)eaking”， and the medicine residue can adopt electric lifting to output the material, which can improve the working environment and reduce the energy consumption. The parts of the unit that contact to materials are all made of stainless steel, which is in accordance with GMP standard.
Technical Parameters of multi-function Recycle Machine-group
|
Model |
Extractor |
Contractor |
Vacuum pump |
Water pump |
Lift | ||||||
|
Volume （L） |
Jacket
working pressure （Mpa） |
Vessel working pressure （Mpa） |
evaporation（kg） |
Vacuum degree （Mpa） |
Working pressure of heater （Mpa） |
Voltage （V） |
power（KW） |
power（KW） |
power(KW) | ||
|
TNH-50 |
65 |
0.15 |
Normal pressure |
20 |
-0.018 |
0.09 |
380 |
3 |
0.75 |
0.25 | |
|
TNH-100 |
125 |
0.15 |
Normal pressure |
50 |
-0.018 |
0.09 |
380 |
3 |
0.75 |
0.25 | |
|
TNH-200 |
250 |
0.15 |
Normal pressure |
100 |
-0.018 |
0.09 |
380 |
3 |
0.75 |
0.25 | |
|
TNH-300 |
375 |
0.15 |
Normal pressure |
150 |
-0.018 |
0.09 |
380 |
3 |
0.75 |
0.25 | |
|
TNH-400 |
475 |
0.15 |
Normal pressure |
200 |
-0.018 |
0.09 |
380 |
3 |
0.75 |
0.25 | |
Notes:
The technical parameters in the chart is standard configuration. Any specific requirements, please let us know.

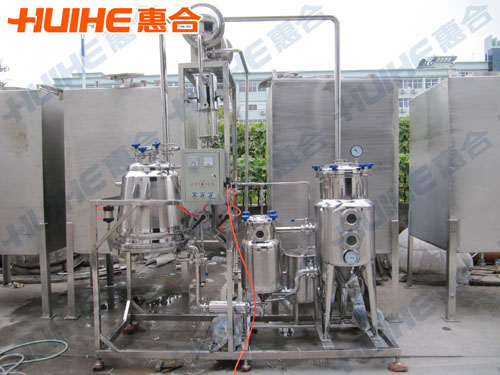

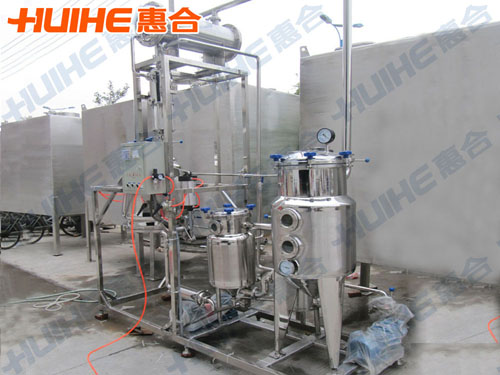

multi-function Recycle Machine-group Finished Picture
